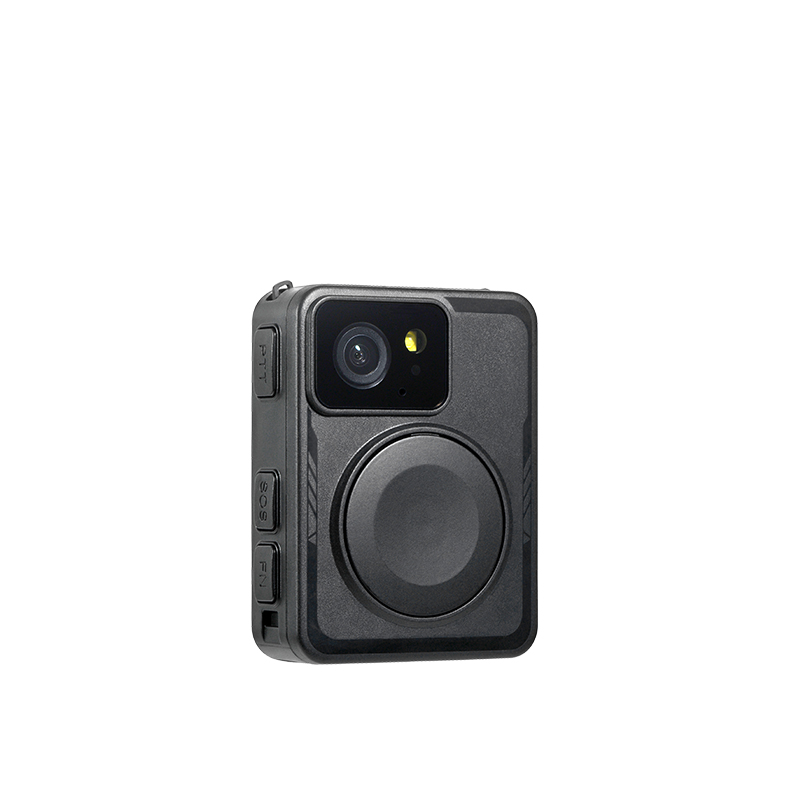

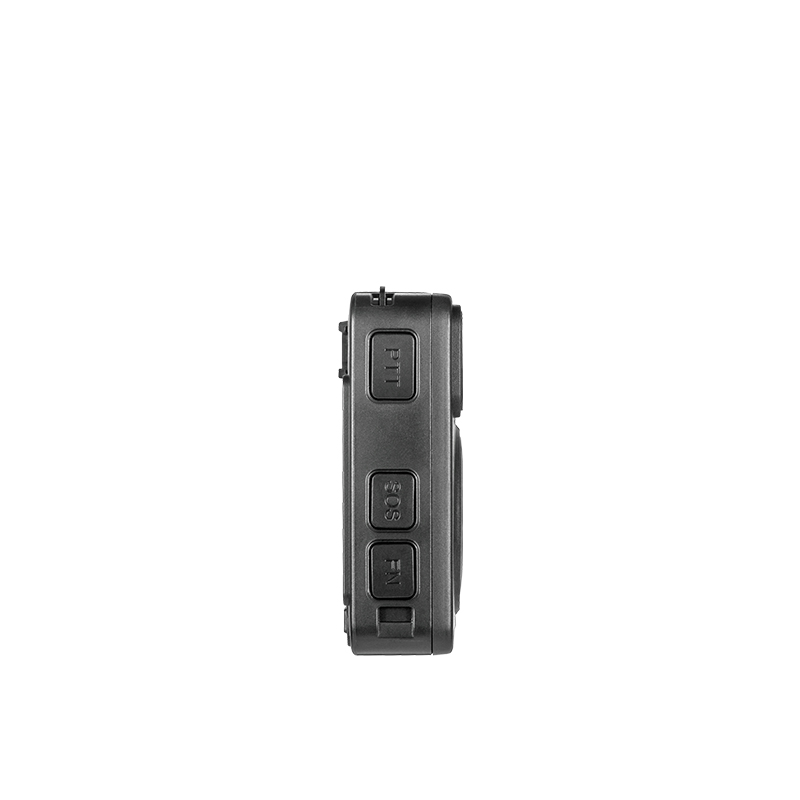

Model |
KC002 |
|
|
OS |
OS |
Linux version 4.4.94 |
|
Display |

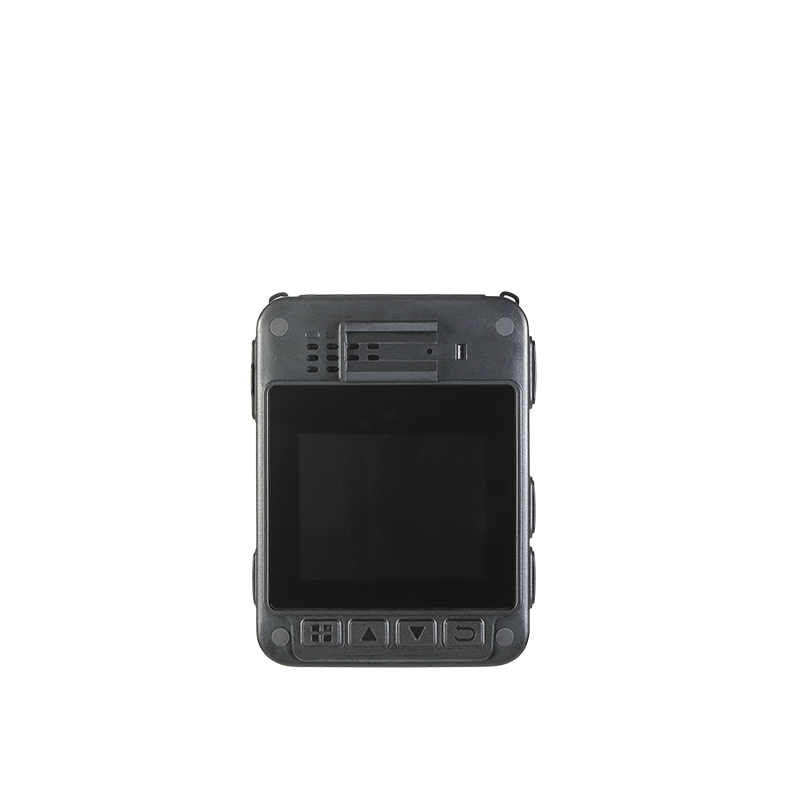

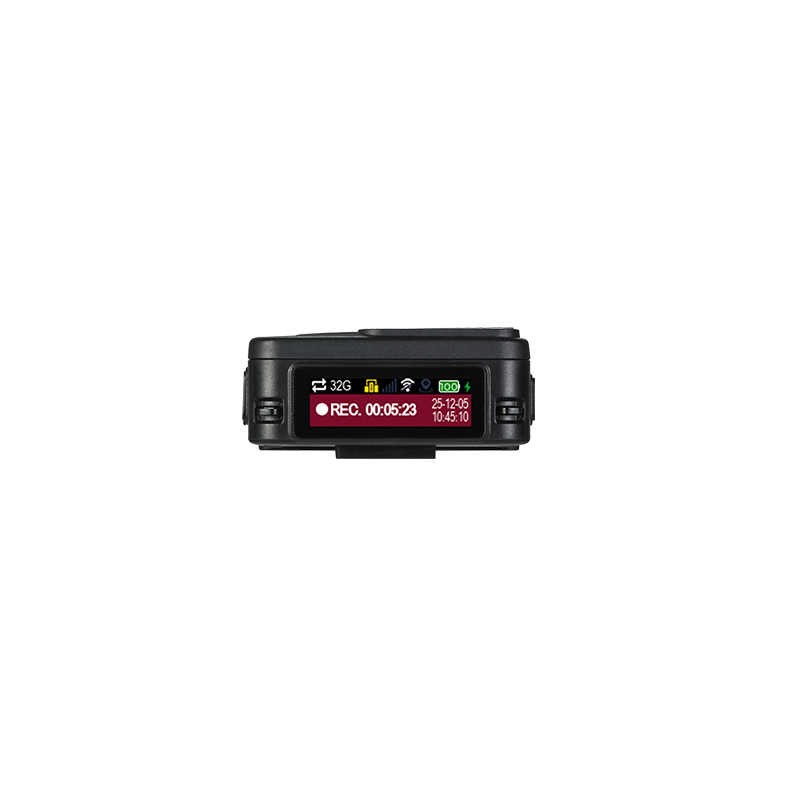

1.12 inch top LCD for status 1.50 inch back LCD for live and menu (optional) |
|
|
Video |
Video Input |
SC200AI with HDR |
|
Recording Resolution |
1920x1080, 1280x720 |
|
|
Frame Rate |
30/15/5 FPS |
|
|
Record Mode |
Video and audio synchronized |
|
|
Audio |
Audio Input |
Built-in MEMS microphone |
|
Compression |
PCM format (AAC optional) |
|
|
Storage |
Data Store |
Built-in 32GB TF card(64GB～1TB is available) |
|
Lens |
HOV |
About 120° |
|
Network |
Wi-Fi |
Optional，supports Wi-Fi client and AP mode |
|
4G |
Optional, LTE module with selectable eSIM |
|
|
Blue Tooth |
Supports Blue-Tooth 4.2 or higher（Optional） |
|
|
NFC |
Supports NFC function（Optional） |
|
|
Light |
Flash Light |
help for viewing in night |
|
Location |
GPS |
Fast cold and warm start with or without AGPS, real-time GPS positioning |
|
Firmware |
OSD Burn In |
With logo, date, time, device ID, officer ID, etc. |
|
Overwrite |
Can be enabled or disabled |
|
|
Record Encryption |
Supports stream and file encryption |
|
|
Log |
Record keys operation, settings change, events, alarms, battery charging and more |
|
|
Software |
Video Live System |
1. Live video and audio streaming 2. Platform intercom and group Intercom 3. Real-time positioning 4. Cameras management 5. Reporting functionalities |
|
Digital Evidence Management |
1. Web-based UI 2. Accounts management 3. Seamless distributed scaling 4. Automatic data collection and storage 5. Video files retrieval and playback 6. Sharing devices assigned via Fingerprint/NFC 7.Firmware upgrade for body-worn cameras |
|
|
Power |
Battery Capacity |
Built-in 1500mAh |
|
Battery Life |
14 hours continuously recording @1080P30 |
|
|
Working condition |
Temperature |
-30--60℃ |
|
Humidity |
5%～95% |
|
|
Other |
Pack Method |
Magnet and safety pin |
|
Time |
Time sync with NTP and GPS |
|
|
Indicators |
Recording, idle, charging |
|
|
Physical Size |
65.6x48.6x20.5mm |
|
|
Weight |
About 80g |
|
